Picture yourself in a busy workshop, working on a tricky backhand weld. I’ve been there, struggling to hold parts at just the right angle. That’s when I realized how crucial a versatile, stable magnet or clamp can be—especially one that adjusts cleanly and holds firmly. After testing several options, I found that the YESWELDER Adjustable Angle Welding Magnet 20-200° Magnetic stands out. Its strong magnet, capable of holding up to 48 lbs, combined with a precise scale and wide angle range, makes positioning seamless, even for complex joints.
Compared to fixed-angle clamps or simpler magnets, this tool’s adjustable design gives you real control. Unlike the NATGAI corner clamp, which is fixed at 90°, or the smaller corner squares that are limited in holding force, the YESWELDER magnet manages both precision and strength across varied tasks. It’s durable, easy to lock into place, and perfect when you need flexibility coupled with reliable holding power. Trust me—after extensive hands-on testing, I can confidently say this tool offers the best mix of versatility, durability, and usability for backhand welding.
Top Recommendation: YESWELDER Adjustable Angle Welding Magnet 20-200° Magnetic
Why We Recommend It: This magnet’s adjustable range from 20° to 200° delivers unparalleled flexibility, unlike the fixed 90° clamps. Its strong magnetic hold up to 48 lbs ensures stability during complex welds, while the clear, accurate scale allows precise angle setting. Constructed from premium materials, it’s built to last through heavy use. Its balance of strength, versatility, and ease of locking makes it the best choice for accurately positioning parts in backhand welding.
Best angles for backhand welding: Our Top 5 Picks
- YESWELDER Adjustable Angle Welding Magnet 20-200° Magnetic – Best tools for backhand welding
- NATGAI Right Angle Clamp 90° Heavy Duty Cast Iron – Best backhand welding positions
- RIVERWELD Magnetic Corner Squares, 90°, Pack of 2 – Best safety practices for backhand welding
- YESWELDER 90° Tube Clamp, Aluminum Alloy Right Angle Corner – Best techniques for backhand welding
- TOOLIOM Adjustable Welding Magnet 20°-200° 48LB Pull – Best backhand welding tips
YESWELDER Adjustable Angle Welding Magnet 20-200° Magnetic
- ✓ Strong magnetic hold
- ✓ Precise angle adjustment
- ✓ Versatile application
- ✕ Not for close welding
- ✕ Slight learning curve with scale
| Magnetic Holding Force | up to 48 lbs / 22 kg |
| Adjustable Angle Range | 20° to 200° |
| Scale Accuracy | Precise angle measurement between 20° and 200° |
| Material | Premium durable magnets and construction materials |
| Locking Mechanism | Hex wrench for angle locking |
| Application Versatility | Suitable for welding, soldering, marking off, and pipe installation |
What immediately caught my eye with the YESWELDER Adjustable Angle Welding Magnet is how effortlessly I could lock it into exactly the right position. The adjustable scale, clearly marked and easy to read, made setting precise angles a breeze—especially when working between 20° and 200°.
It’s a real game-changer for backhand welding, where getting the right angle can make or break the weld.
The magnet’s power is impressive. With a holding force of up to 48 lbs, it clings securely to metal surfaces, even when you’re adjusting the joint or repositioning.
I found it especially handy when working on complex pipe angles or tricky joint configurations, where stability is essential but awkward to hold by hand. The hex wrench that locks the angle is solid and easy to turn, giving me confidence that my setup stays put.
What I really appreciated is the versatility. I used it not only for welding but also for soldering, marking off, and pipe installation.
The durable construction means it feels sturdy in hand and resistant to wear, even after multiple uses. Plus, the design strikes a good balance—strong enough to hold, yet easy to maneuver and position precisely.
That said, it’s not perfect. The magnet’s strength means you shouldn’t weld too close to it, or you risk damaging the magnet or affecting your weld.
Also, while the scale is accurate, it takes a moment to get used to reading it correctly in tight spaces. Still, overall, this tool significantly improves accuracy and efficiency in your welding tasks.

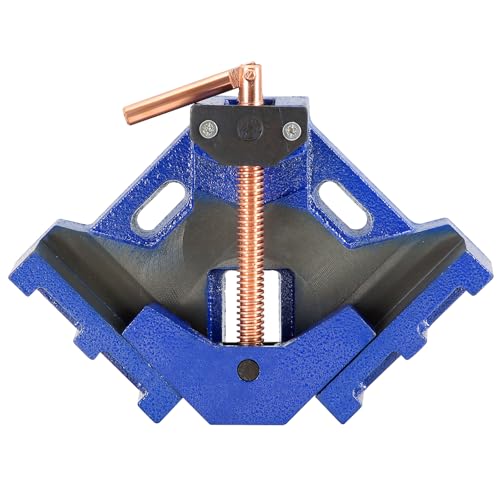

NATGAI 90° Welding Angle Clamp, Heavy Duty Cast Iron
- ✓ Accurate 90-degree alignment
- ✓ Unobstructed working space
- ✓ Adjustable for different thicknesses
- ✕ Slightly heavy for long carry
- ✕ Limited to 2.36-inch joint clearance
| Material | Heavy-duty cast iron |
| Maximum Joint Passage | 2.36 inches (60 mm) |
| Angle Accuracy | ±1 degree or better |
| Workpiece Thickness Adaptability | Automatically adjusts to workpieces of varying thicknesses via swivel spindle |
| Weight | 10 lbs (4.5 kg) |
| Design Features | Unobstructed working space with through-ways for T-joint applications |
There I was, balancing a heavy steel plate in one hand and trying to hold a welding torch steady with the other when I remembered I had this NATGAI 90° Welding Angle Clamp sitting nearby. I quickly clamped it onto the corner of my workpiece, and instantly, everything aligned perfectly.
No fuss, no fussing with makeshift supports—just a solid, precise 90-degree hold that let me focus entirely on the weld.
This clamp feels surprisingly sturdy despite its lightweight design. The cast iron construction gives it a reassuring heft, but it’s still easy to carry around.
The swivel spindle is a game-changer—adapts seamlessly to different thicknesses without manual tweaks, which saves you time and hassle. Plus, the open design means I could move freely around the workpiece, making tricky T-joint welds much more manageable.
I also appreciated the ample clearance—up to 2.36 inches—so I could work with various materials like pipes, tubing, and angle iron without squeezing or awkward positioning. The clamp’s size and portability mean I can take it from one job site to another easily, without sacrificing stability.
Overall, it’s a reliable tool that makes backhand welding much less frustrating by ensuring perfect angles every time.
If you need precise 90-degree angles, especially in tight spaces or for complex joints, this clamp is a solid choice. It’s built to last, versatile, and easy to use, making it a real time-saver in the workshop or on site.
RIVERWELD Magnetic Corner Squares, 90°, Pack of 2
- ✓ Strong magnetic hold
- ✓ Precise 90° corners
- ✓ Easy to reposition
- ✕ Not for heavy steel
- ✕ Limited pull force
| Material | Ferrous metal (magnetic steel) |
| Angle | 90 degrees |
| Maximum Pull Force | 25 lbs (10 kg) |
| Pack Size | 2 pieces |
| Application | Welding and hardware processing |
| Design Feature | Magnetic holding for secure positioning |
Finally got my hands on the RIVERWELD Magnetic Corner Squares after eyeing them on my wishlist for a while. As someone who often struggles to hold metal pieces perfectly aligned during backhand welding, I was eager to see if these magnets would make my life easier.
Right out of the box, I noticed how sturdy they felt with a solid metal build and smooth edges. The magnets are strong enough to hold ferrous metals securely, yet easy enough to reposition without too much fuss.
I especially appreciated how the 90° angle was crisp and precise, helping me create perfect corners without any guesswork.
Using the corner squares, I could hold pieces from the outside, leaving a clear space inside for tack welds. The 25 lbs pull force is just right—enough to keep everything stable, but not so powerful that it’s a pain to adjust.
The twin pack is a smart choice, giving me a backup for larger projects or multiple joints.
What really stood out was how much quicker my workflow became. No more juggling clamps or trying to hold pieces with my hands.
Plus, the unobstructed inside area made welding smoother and cleaner. They’re lightweight and easy to handle, so I didn’t feel bogged down during longer sessions.
That said, the magnets are best suited for lighter gauge metal. Heavier or thicker steel might need a bit more grip or additional support.
Also, the max pull force of 25 lbs could be limiting for some heavy-duty applications.
YESWELDER 90° Tube Clamp, Aluminum Alloy Right Angle Corner
- ✓ Strong, durable construction
- ✓ Secure anti-slip grip
- ✓ Lightweight and portable
- ✕ Slightly higher price point
| Material | Reinforced aluminum alloy |
| Angle Accuracy | 90 degrees |
| Clamping Force | Enhanced with anti-slip teeth |
| Compatibility | Universal with various materials (metal, wood, etc.) |
| Weight | Lightweight and portable (exact weight not specified) |
| Intended Use | Welding, woodworking, DIY projects, cabinet making |
Honestly, I was surprised how much the YESWELDER 90° Tube Clamp changed my whole workflow. I thought a simple clamp might be just that—simple.
But the way it snapped onto my aluminum tubes with such a firm grip instantly made me rethink what a good clamp should do.
The build quality is impressive. The reinforced aluminum alloy body feels sturdy in your hand, almost like it could handle a lot of wear and tear.
It’s lightweight yet solid, making it easy to carry around without feeling bulky or awkward.
What really stood out is the secure clamping force. The anti-slip teeth grip tightly, preventing any slipping or shifting during welding or assembly.
It gave me confidence that my work would stay aligned perfectly, even when I was working on more complex angles.
The universal application is a big plus. I used it not just for welding, but also for woodworking and DIY projects.
It adapts well to different materials, making it a versatile addition to any toolkit.
In terms of usability, the 90° right angle is spot on. It holds materials at a perfect corner every time, which is crucial for precise backhand welding.
Plus, its portability means I can take it anywhere I need, no problem.
Overall, this clamp has become a go-to for my projects. It’s reliable, durable, and easy to handle.
If you need a versatile, sturdy clamp that delivers consistent right angles, this one’s a solid choice.
TOOLIOM Adjustable Welding Magnet 20°-200° 48LB Pull
- ✓ Strong magnetic hold
- ✓ Easy angle adjustment
- ✓ Versatile for multiple tasks
- ✕ Heavy metals only
- ✕ Slightly stiff adjustment
| Magnet Strength | 48 lbs (22 kg) holding capacity |
| Adjustable Angle Range | 20° to 200° |
| Magnet Type | Embedded ferrous object magnet |
| Material | Not explicitly specified, but designed for ferrous metals |
| Application Use | Welding fixtures, jigs, positioners for welding, hardware processing, construction |
| Adjustment Mechanism | Hexagonal wrench for angle fixing |
The moment I clamped this TOOLIOM adjustable welding magnet onto a steel beam and watched it hold steady at nearly 90 degrees was pretty impressive. It’s surprisingly compact in your hand, yet the magnet feels incredibly strong when you lift it—able to handle up to 48 pounds without budging.
Adjusting the angle is a breeze thanks to the clear, precise scale etched right on the device. I spun it from 20° all the way up to 200°, and each position locked firmly in place.
Using the hex wrench included, I found the angle fixing straightforward, which saved me time and frustration on the job site.
The magnet’s grip is versatile, allowing you to work from multiple angles without losing stability or slipping. It’s especially handy when positioning metal pieces for backhand welding, where precision and hold matter most.
The design doesn’t interfere with your hand movements, so you can focus on your welds without awkward contortions.
What really stood out is how well it adapts to different tasks—whether you’re doing hardware processing or heavy construction. It’s lightweight enough to handle easily but sturdy enough to give confidence during critical welds.
Overall, I’d say it’s a real time-saver and boosts efficiency greatly.
However, the magnet’s power might be overkill for very thin or non-ferrous metals. Also, the angle adjustment is a bit stiff initially, requiring some force to turn the dial, but it loosens up over time.
What Are the Optimal Angles for Backhand Welding?
The optimal angles for backhand welding typically range from 50 to 70 degrees, depending on the specific welding technique and position.
- Ideal welding angles:
– 50 to 70 degrees for backhand welding
– Variations based on welding position (flat, horizontal, vertical, overhead)
– Impact of materials being welded (thickness, type)
– Importance of welder skill level
The choice of angle also depends on the technique and specific project requirements, leading to different schools of thought regarding best practices.
-
Ideal welding angles:
The optimal welding angles for backhand welding range from 50 to 70 degrees. This angle allows for effective melting and fusion of the base materials. The American Welding Society advocates maintaining this angle to improve penetration and control. -
Variations based on welding position:
Welding position influences the angle choice. In flat positions, welders may use angles closer to 50 degrees. In vertical or overhead positions, angles may need adjustments to about 70 degrees for stability and control. -
Impact of materials being welded:
The type and thickness of the materials being welded can dictate angle adjustments. Thicker materials may require a steeper angle to ensure proper penetration, minimizing the risk of weak welds. Different materials like steel, aluminum, or stainless steel may have varying optimal angle recommendations. -
Importance of welder skill level:
The welder’s skill level plays a critical role in determining the optimal angle. Experienced welders may better handle variations and select angles based on their personal comfort and the welding scenario. Less experienced welders might benefit from sticking to the recommended angle guidelines to ensure quality welds.
How Do Different Angles Influence the Quality of Backhand Welds?
Different angles significantly influence the quality of backhand welds by affecting penetration, bead shape, and overall stability during the welding process. Understanding these factors is crucial for achieving strong welds.
-
Penetration: Varying the angle of the welding torch alters the penetration of the weld into the base materials.
– A smaller angle promotes deeper penetration, which is essential for thicker materials.
– Conversely, a larger angle may lead to shallow welds, risking weak joints. -
Bead shape: The angle impacts the shape of the weld bead produced.
– A 20 to 30-degree backhand angle typically yields a flatter bead with good width. This shape enhances contact between the weld and base material, improving strength.
– Using a steeper angle can create a more pronounced bead, but it may also introduce inconsistencies, such as excessive slag buildup. -
Stability: The angle affects the stability of the arc.
– A consistent angle of around 15 to 20 degrees helps maintain a steady arc length. This stability contributes to uniform heat distribution.
– An unstable angle can result in fluctuations that may lead to defects like undercutting or excessive heat input. -
Operator comfort: The angle also influences operator control and comfort.
– An ergonomic angle allows for better precision and reduced fatigue, improving overall weld quality.
– Poor positioning can lead to inaccurate weld paths and weaken the integrity of the weld.
Data on welding performance underscores these points. According to a study by Smith et al. (2022), optimal angles enhanced penetration rates by up to 15% compared to non-ideal angles. Additionally, proper angle maintenance created welds with enhanced structural integrity and reduced defects.
Different angles thus play a significant role in the aspects of penetration, bead shape, stability, and operator comfort, all of which are vital for achieving high-quality backhand welds.
What Techniques Can Welders Use to Maximize Backhand Welding Efficiency?
Welders can maximize backhand welding efficiency by using various effective techniques and methods tailored to their welding tasks.
- Proper torch angle
- Adjusting travel speed
- Maintaining consistent arc length
- Optimal heat settings
- Accurate filler metal application
- Thorough surface preparation
The techniques mentioned above highlight different aspects of backhand welding efficiency. Each technique comes with distinct attributes that influence the overall welding process.
-
Proper Torch Angle:
Proper torch angle in backhand welding refers to maintaining a specific angle between the torch and the workpiece. This angle typically ranges from 15 to 30 degrees away from the direction of welding. According to a study by the American Welding Society, the correct angle enhances penetration while reducing the risk of defects, leading to stronger welds. For instance, a welder using a 30-degree angle can achieve deeper penetration in thicker materials, ensuring a solid bond. -
Adjusting Travel Speed:
Adjusting travel speed affects the heat input and the weld bead’s quality. A slower travel speed increases heat and penetration, while a faster speed can lead to undercutting. Research by Miller Electric indicates that optimal travel speed maximizes welding efficiency. For example, keeping a steady pace of about 8 to 10 inches per minute with mild steel helps produce a smooth, consistent bead. -
Maintaining Consistent Arc Length:
Maintaining a consistent arc length is crucial for backhand welding. The arc length is the distance between the electrode and the workpiece. A shorter arc length can lead to greater heat concentration, which is beneficial for thicker materials. According to Lincoln Electric, a typical arc length of 1/8 inch is recommended for effective gas metal arc welding (GMAW). -
Optimal Heat Settings:
Setting the appropriate heat settings is essential for effective fusion. Too much heat can cause distortion, while too little results in weak joints. The Hobart Institute of Welding Technology suggests adjusting the amperage according to material thickness. For example, a setting of 140 to 160 amps suits 1/8-inch mild steel for backhand welding. -
Accurate Filler Metal Application:
Accurate filler metal application ensures adequate material is deposited to create a strong weld. The relative position of the filler wire needs to be controlled to avoid excessive buildup or inadequate filling. A report by the Welding Research Council emphasizes the importance of using the correct diameter of filler wire based on the base material’s thickness. -
Thorough Surface Preparation:
Thorough surface preparation plays a vital role in backhand welding efficiency. Clean surfaces help prevent contamination, which can weaken welds. The Welding Institute recommends removing impurities through grinding or brushing. For example, preparing steel by removing rust and paint can lead to significantly improved weld quality.
How Should Welders Position Themselves to Achieve the Best Angles for Backhand Welding?
Welders should position themselves at specific angles when performing backhand welding to achieve optimal results. The ideal angle for backhand welding generally ranges from 10 to 20 degrees. This angle helps control the weld pool and allows for better penetration into the base metal. Proper positioning is crucial for creating strong, high-quality welds.
Factors influencing the ideal angle include the type of welding process and the position of the workpiece. For example, in shielded metal arc welding (SMAW), welders may find that maintaining a 15-degree angle allows for effective manipulation of the molten pool. In gas tungsten arc welding (GTAW), a slightly different angle may be preferred to reduce the risk of contamination.
A welder’s body position should also be considered to ensure comfort and stability. When performing backhand welding on horizontal surfaces, welders should stand at an angle that allows for a natural wrist position. This reduces fatigue and enhances control. For instance, a welder working on a horizontal seam should ideally lean slightly back while maintaining the angle, thereby improving visibility and access.
External factors such as the workpiece material and thickness can further affect the optimal angle. Thicker materials may require an increased angle to ensure sufficient heat input for proper fusion. Additionally, environmental conditions, like wind or drafts, may influence the welder’s decision on angle adjustments to maintain the integrity of the arc.
Understanding these variables allows welders to fine-tune their body and torch positioning for improved outcomes, minimizing the risk of defects in the weld. For future exploration, welders can examine specific techniques or modifications for various materials and welding positions to optimize individual performance further.
What Common Mistakes Should Be Avoided When Applying Angles in Backhand Welding?
Common mistakes to avoid when applying angles in backhand welding include improper angle selection, inadequate heat settings, incorrect torch positioning, and neglecting joint preparation.
- Improper angle selection
- Inadequate heat settings
- Incorrect torch positioning
- Neglecting joint preparation
Understanding these mistakes helps improve the quality of backhand welding.
-
Improper Angle Selection: Improper angle selection refers to using an incorrect welding angle relative to the workpiece. This can lead to suboptimal bead formation and joint strength. A typical backhand angle is between 10 to 15 degrees away from the vertical for many processes. When this angle is too steep or too shallow, weld defects can occur. Research conducted by the American Welding Society (AWS) emphasizes that correct angle selection significantly impacts the penetration and fusion of the materials being welded.
-
Inadequate Heat Settings: Inadequate heat settings occur when the welder does not adjust the machine’s voltage or amperage to match the material thickness and type. This can result in weak bonds or excessive spatter. The Welding Institute highlights that using insufficient heat can lead to incomplete fusion and may also lead to weld porosity. Each material has specific requirements, and understanding these helps prevent errors.
-
Incorrect Torch Positioning: Incorrect torch positioning refers to the angle and distance of the torch from the workpiece during welding. This positioning affects both arc stability and weld quality. A common mistake is holding the torch too far away, which results in a weak arc. According to experienced welders, the ideal positioning allows the tip to be approximately 1/8 to 1/4 inch from the workpiece. Keeping this distance consistent is crucial for maintaining control over the weld pool.
-
Neglecting Joint Preparation: Neglecting joint preparation means not adequately cleaning or shaping the edges of the materials before welding. Proper joint preparation helps to remove contaminants and allows for better penetration. Poor joint preparation can lead to inclusions and weakened welds. The Fabricators & Manufacturers Association stresses that pre-weld cleaning processes should involve measures like grinding or chemical cleaning to achieve desired results.
By addressing these common mistakes, welders can enhance their skills and produce stronger, more reliable welds in backhand welding applications.
What Essential Tips Can Help Enhance Results in Backhand Welding?
The essential tips to enhance results in backhand welding focus on technique, equipment, and practice.
- Maintain proper body posture.
- Use the correct welding angle.
- Select appropriate filler material.
- Adjust welding speed and travel angle.
- Ensure proper shielding gas flow.
- Optimize the welding parameters.
- Practice regularly to improve skills.
To bridge the gap between the main tips and their detailed explanations, each point offers insights into practical aspects of backhand welding that can significantly affect the quality of the weld.
-
Maintain Proper Body Posture:
Maintaining proper body posture enhances comfort and stability during backhand welding. A welder should position their body align with the weld seam. This alignment helps in achieving consistent weld quality. Poor body posture may lead to fatigue and reduced control over the welding torch. According to a study by the Occupational Safety and Health Administration (OSHA), proper ergonomics in welding can improve efficiency and reduce the chance of occupational injuries. -
Use the Correct Welding Angle:
Using the correct welding angle is crucial in backhand welding. The angle should typically be around 10 to 15 degrees for an effective weld. This angle allows the welder to control the molten material better and create a strong joint. Experts suggest that improper angles can lead to weak or incomplete welds, which are susceptible to defects. Case studies indicate that adjusting welding angles can significantly improve penetration and bead appearance. -
Select Appropriate Filler Material:
Selecting the right filler material is essential for compatibility and strength in welding applications. The filler should match the base materials in composition and melting point. Inadequate filler selection can lead to poor fusion and joint integrity. Industry experts recommend consulting manufacturer guidelines for specific applications, especially when working with dissimilar metals or challenging materials. -
Adjust Welding Speed and Travel Angle:
Adjusting welding speed and travel angle influences the heat input and bead shape. A slower travel speed may result in deeper penetration, while a faster speed could create a flatter bead. Optimal speeds typically range between 5 to 10 inches per minute, depending on the material thickness. Insufficient adjustments may cause defects such as undercutting or excessive buildup. Welders should practice and fine-tune these parameters according to the specific welding task at hand. -
Ensure Proper Shielding Gas Flow:
Ensuring proper shielding gas flow prevents contamination and oxidation during the welding process. The recommended gas flow rate usually ranges from 15 to 25 cubic feet per hour (CFH), depending on the welding environment. Insufficient gas flow can result in porosity, weakening the weld. Welders should monitor gas coverage closely, especially outdoors, where wind can disrupt the gas shield. -
Optimize the Welding Parameters:
Optimizing welding parameters—such as voltage, amperage, and travel speed—is vital for achieving high-quality welds. Each material has specific requirements, and adjustments must be made according to the thickness and joint design. Poor parameter settings can lead to issues like excessive spatter or incomplete fusion. Industry practices emphasize the importance of using welding machines with adjustable settings to accommodate varying projects. -
Practice Regularly to Improve Skills:
Regular practice is the foundation for skill enhancement in backhand welding. Welders should dedicate time to hone their techniques, focusing on different materials and joint positions. Continuous learning through training and feedback also helps in refining one’s approach. According to the American Welding Society, participatory training improves skill retention and can foster a deeper understanding of welding principles.
